Fol-Da-Tank

Single Lane Tank Type I

Single Lane Tank Type I

The Single Lane Tank® facilitates maximum flow rates for water AND water tender traffic.  Two or more of our SLT® 2000 tanks will give you maximum capacity on the ground without affecting the opposite lane of traffic.  The SLT® is a must for narrow rural roads having little or no shoulder!  The SLT® comes in various frames and liner fabrics.  Frame sizes are 8’x14’x29″ with steel or aluminum tubing.  The liner fabrics to choose from are all 22 oz. vinyl, 22 oz. vinyl sides with 30 oz. floor, all 22 oz. HPR, 22 oz. HPR sides with 30 oz. floor and all 30 oz. vinyl.  To help keep the flow of water and eliminate any lift is the side mounted stabilizing flange plate assembly.

The assembly includes: mounting plate, flange (sizes available are 4″, 5″ and 6″.  The mounting plate is also adaptable to any folding frame tank and model.

To purchase a complete SLT® system the system would include:

  1. 2-8’x14’x29″ tanks (Other rectangular sizes available soon)
  2. Mounting plate with 1 – female swivel and flange for the outside and 1-male  flange for the inside of the tank.  Size 4″ – 6″ (The plate helps to stabilize your flange.)

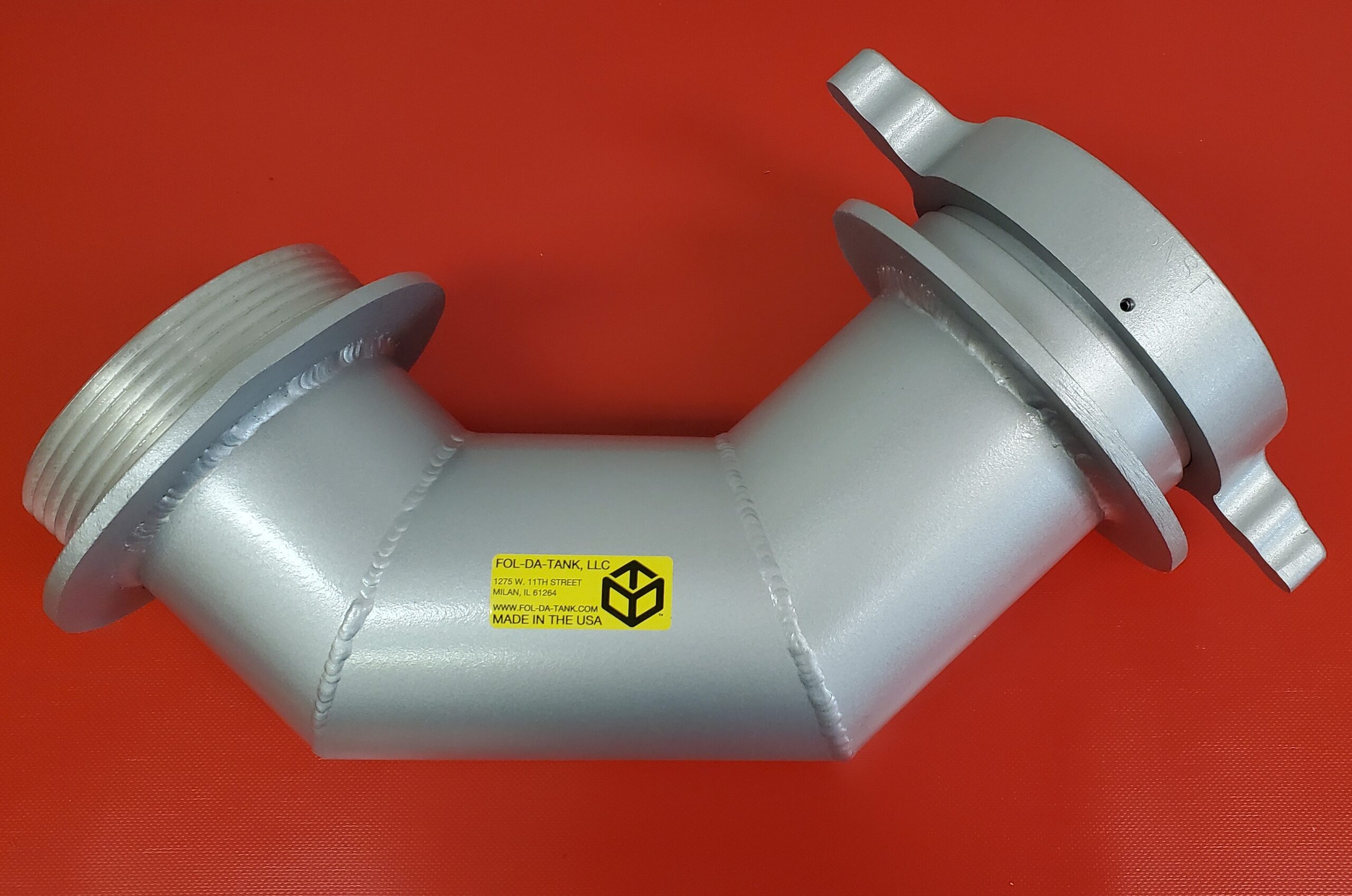

  3. Standard 6″ al mag casting 90° elbow or optional 6″ tubing 90° elbow.  (Call for pricing)
  4. Flex-Lite Hose 4″ – 6″

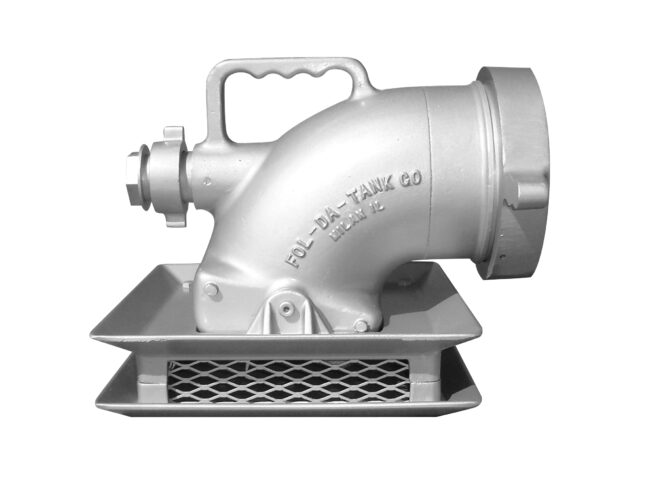

  5. Low Flow Strainer 4″ – 6″

Through the wall drafting accessories also sold separately to retro fix your existing tank.

  • Steel or Aluminum Frame
  • 22 oz HPR (High-Performance Rubber)
  • Yellow or Red
  • 22 oz Vinyl — Red, Yellow, Orange, Black or Blue
  • 28 oz Vinyl — Red, Yellow, Orange, Black or Blue
  • You can order 22 oz sides with 28 oz floor
  • 2-8’X14’X29″ Tanks
  • Mounting Plate with flange
  • Flex-lite hose
  • 6″ tubing 90° elbow (optional)
  • Low flow strainer

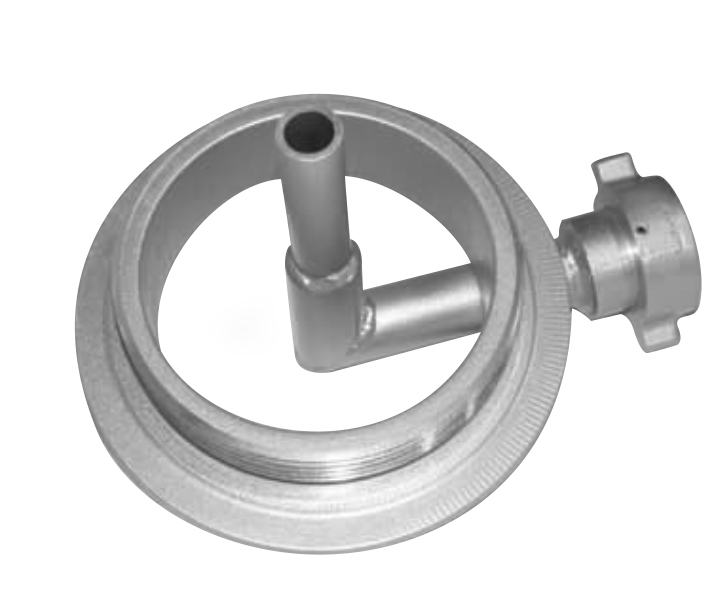

  • Power jet siphon
  • 6″ Al mag casting 990° elbow (standard)



Through the wall drafting accessories also sold separately to retro fix your existing tank.

*For further information please visit GOTBIGWATER.COM (Stanley Iowa Fire School)

Volume

US gal

Open Dimensions

ft (L x W x H)

Closed Dimensions

ft (L x W x H)

2000 14’x8’x29” 14’x8”x29”
2500 16’x9’x29” 16’x8″x29”
3000 16’x10’x29” 16’x8″x29”

Can be ordered as a double fold.
